3D-scanner Revopoint Metrox standard
3D-scanner Revopoint Metrox standard
Beskrivelse
Beskrivelse

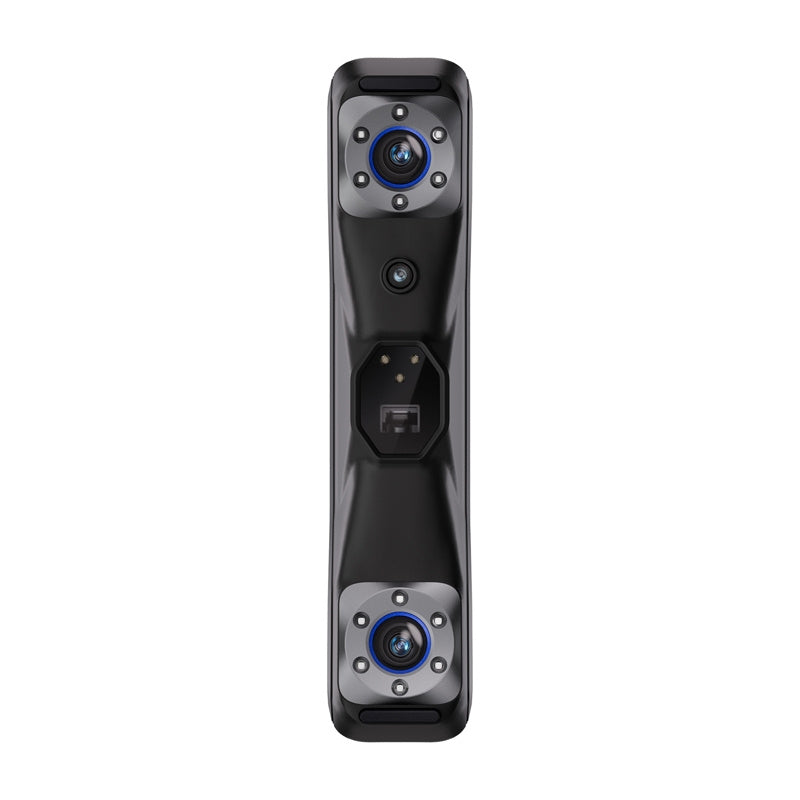

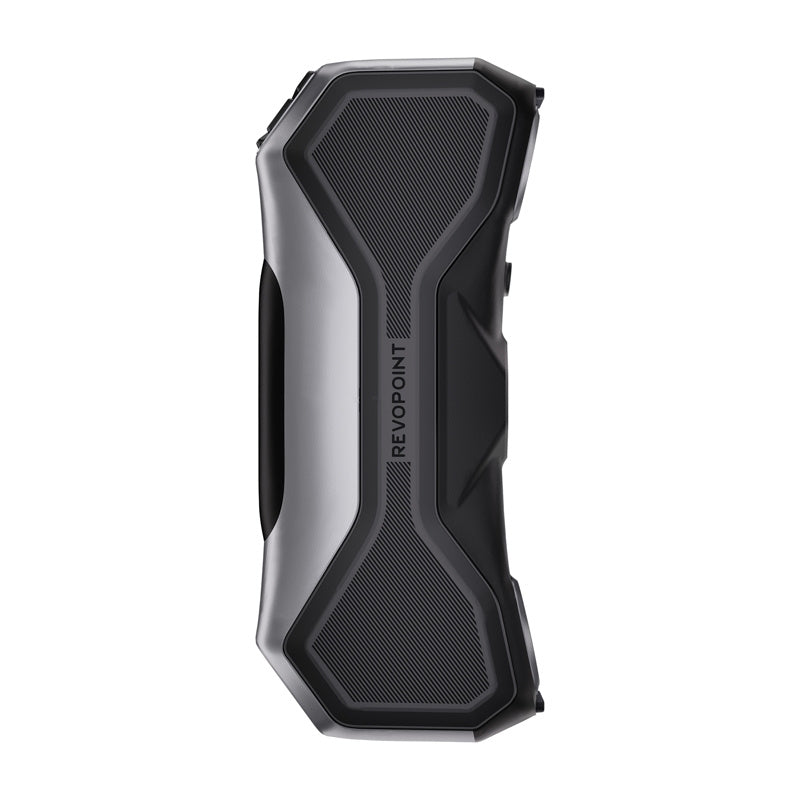

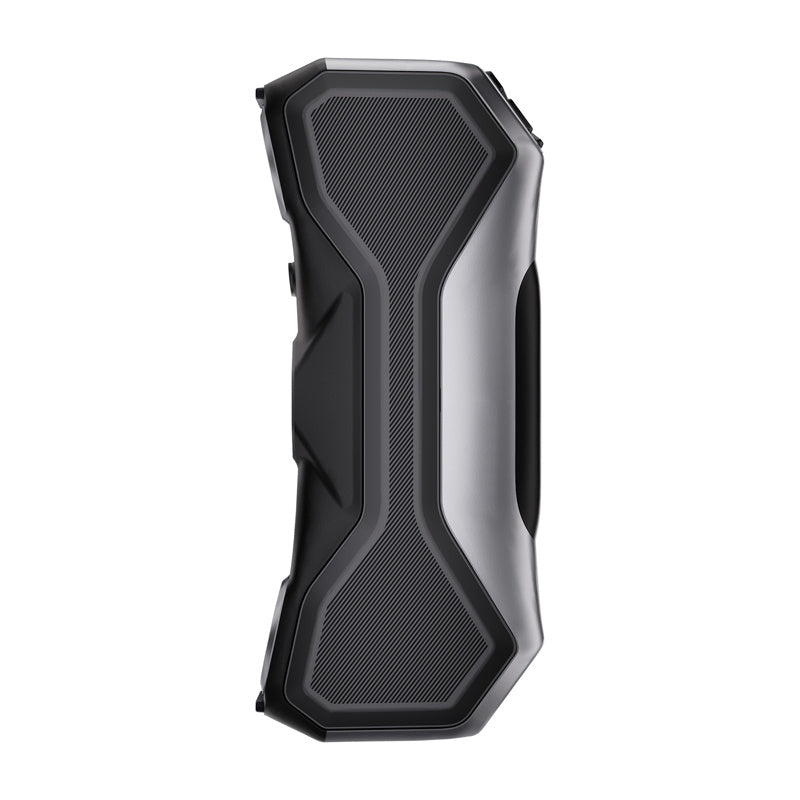

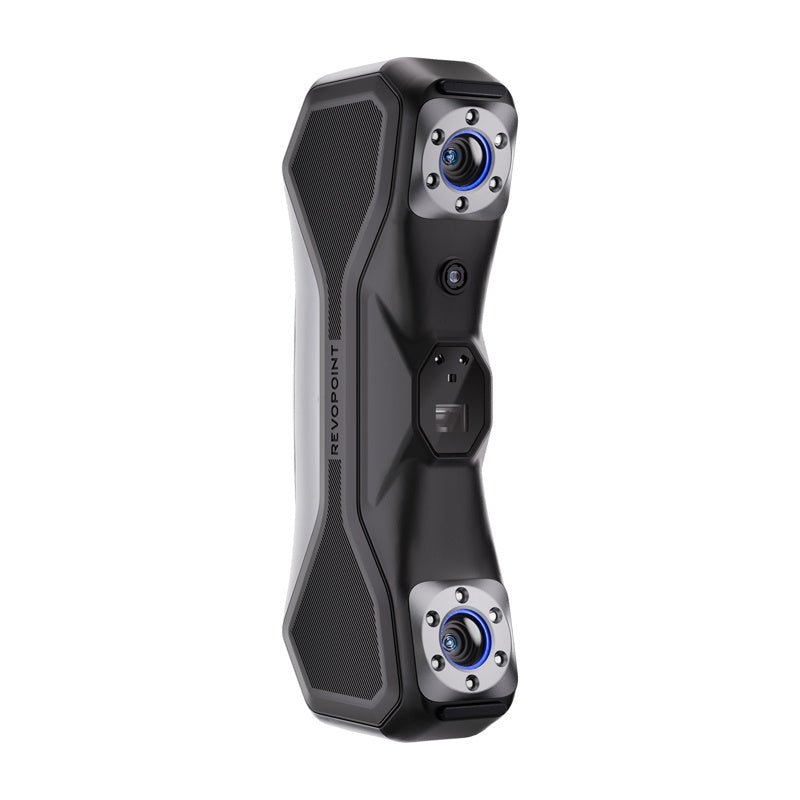

Revopoint Metrox standard 3D scanner
Discover the unparalleled precision and versatility of the Revopoint MetroX standard version scanner - an extremely lightweight device that combines a hybrid multiband laser and full-screen structured blue light to collect up to 7,000,000 points per second in the blink of an eye with an accuracy of 0.03 mm. Four scanning modes allow perfect reproduction of both flat, glossy surfaces and the most complex details, while the included turntable and intuitive Revo Scan software ensure rapid creation of 3D metrology models ready for export to CAD (Computer-Aided Design, a process that uses computer software to create, analyze, modify and document designs) or quality control. Revopoint MetroX is a tool that will take your designs to the next level and finds its way into many situations - from reverse engineering to 3D printing to prototyping.
Groundbreaking 3D scanning technology
The Revopoint MetroX, with its combination of a hybrid multiband laser and full blue structured light, enables professional 3D modeling of small to medium-sized objects. With as many as fourteen intersecting laser lines and seven parallel lines, as well as an impressive light structure of 62 lines, the device is capable of picking up even the most intricate details and invisible surface features, achieving single-frame precision of up to 0.01 mm and total accuracy of up to 0.03 mm. Such detailed work makes the scanner an excellent choice for any demanding user.
Versatility in one device
The MetroX model does not require a matting spray to scan glossy or black surfaces. The unit quickly captures data at up to 800,000 points per second in multi-band laser mode and up to 7,000,000 points per second in full-field structured light mode. The flexible capture area (from 160 × 70 mm at a distance of 200 mm to 320 × 215 mm at a distance of 400 mm) is ideal for both engineering studios and design offices. It is a tool that is revolutionizing the way objects are scanned.
Automation and intuitive operation

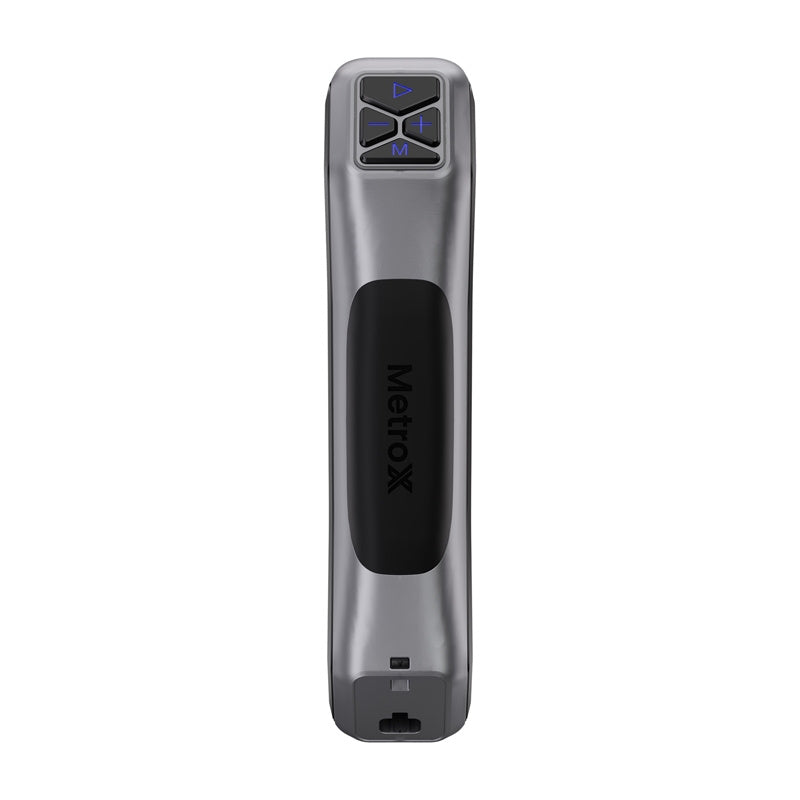

With the included automatic dual-axis turntable, the Revo Scan and MetroX system creates a digital twin of an object at the click of a button, eliminating the need for manual positioning. A four-button real-time control panel allows you to stop operation, adjust depth camera exposure and digital zoom, while the built-in RGB HD (Red Green Blue, an acronym for the three colors - red, green and blue) camera ensures accurate color reproduction in scans. With four scanning modes, you can tailor the device to your current needs to accurately reproduce what you need most.
Comprehensive Revo Scan software
Revo Scan is an extremely intuitive tool that is there to help you through the entire scanning process - from setting scan parameters, to automatic or manual point cloud processing, to editing, merging model segments and exporting to PLY, OBJ, STL, ASC, 3MF, GLTF or FBX formats. Easily remove unwanted data, smooth surfaces, fill cavities and merge partial scans to create a consistent model ready for further processing in software such as Quicksurface, Geomagic Wrap or Geomagic Control. A built-in calibration wizard ensures precise and reliable measurement results.
Professional applications
Revopoint MetroX will prove its worth in reverse engineering processes, enabling the rapid generation of 3D models ready for scan-to-CAD (the process of transforming physical objects or documents into digital CAD models using 3D scanning). It will be great for quality control, where identification of defects and deviations in production can be done in a flash; incremental technology, by creating faithful digital twins of objects for 3D printing; or rapid prototyping, where accurately sized models minimize iterations and save time and resources.
Thoughtful design
The Revopoint MetroX scanner weighs just 508 g and measures 209 x 88 x 44 mm, making it extremely convenient to use. You can easily stow it in the included storage case, plus it doesn't take up much space in your workspace. Enjoy working for hours without discomfort with the Revopoint MetroX!
Included
- MetroX 3D scanner
- wrist strap

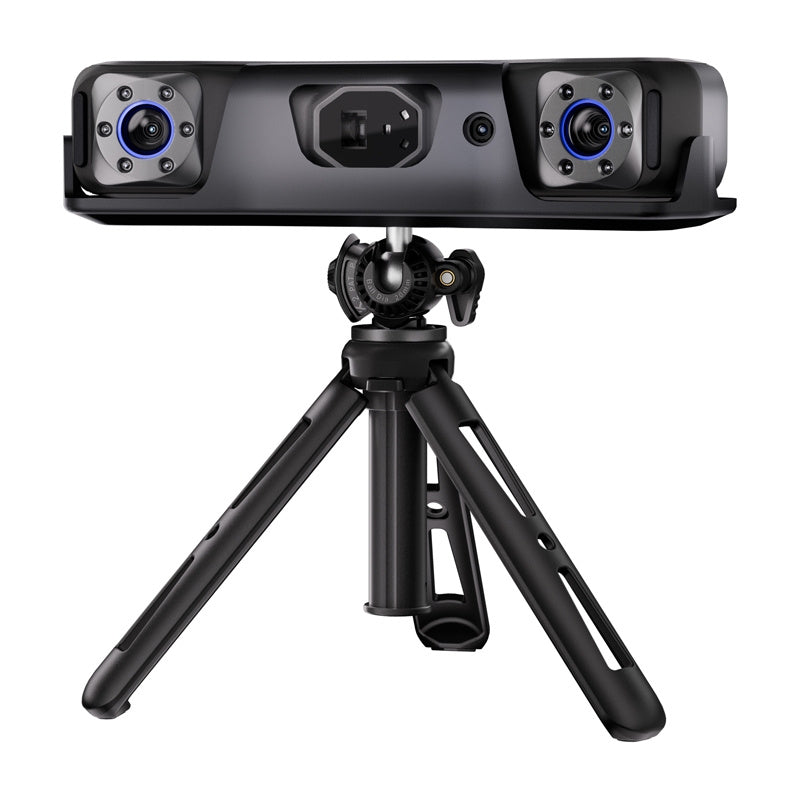

- tripod
- scanner stand
- power supply
- two-axis turntable
- calibration plate
- markers (6 mm)
- USB Type-A to Type-C cable
- USB Type-C to Type-A adapter
- storage case
- scanning bust
- user manual
| Manufacturer | Revopoint |
|---|---|
| Model | MetroX Standard |
| Technology | Multi-line laser scanning and full-field structured light scanning |
| Single frame precision | 0.01 mm |
| Accuracy of a single frame | 0.03 mm |
| Volumetric accuracy | 0.03 mm + 0.1 mm x L (m) (L is the length of the scanned object) |
| Anastomosis point distance | 0.05 mm |
| Working range | 200 - 400 mm |
| Single capture area at closest distance | 160 x 70 mm at 200 mm |
| Single capture area at farthest distance | 320 x 215 mm at 400 mm |
| Minimum scan volume | 10 x 10 x 10 mm |
| Maximum scan volume | 1 x 1 x 1 m |
| Scanning speed | Multi-line laser scanning: 800,000 points per second; full-field structured light scanning: 7,000,000 points per second |
| 3D light source | 14 intersecting blue laser lines, 7 blue parallel lines, 62 lines of blue structured light |
| Camera resolution | 2MP depth camera, 2MP RGB camera |
| CPU | ARM 4-core, 2.0 GHz |
| Depth camera fill lights | 12 blue LED lights |
| Dimensions | 209 x 88 x 44 mm |
| Weight | 508 g |
