Bærbare solpanel VTOMAN VS110 110W

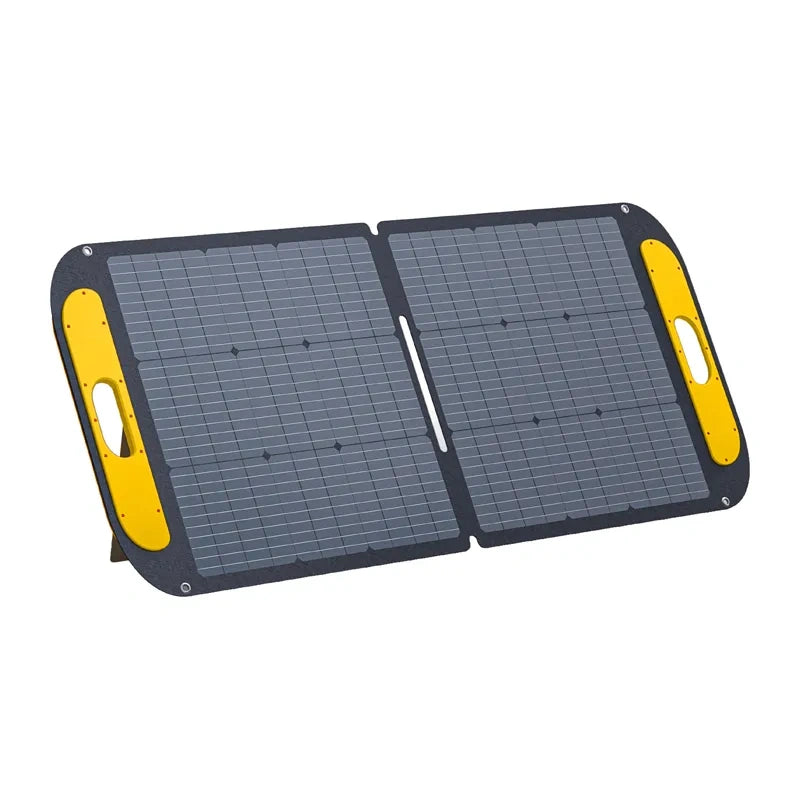

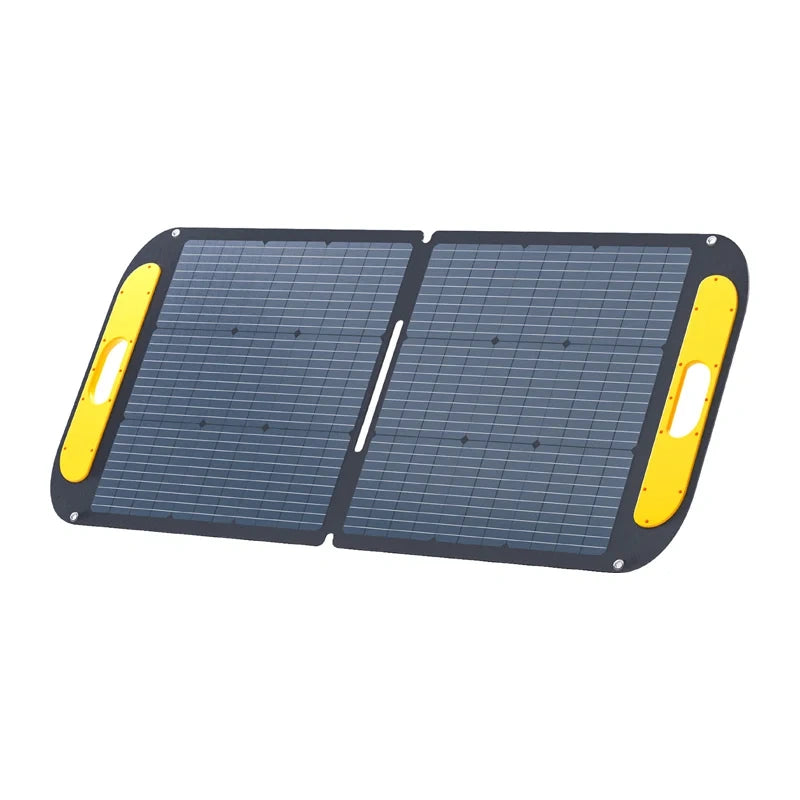

VTOMAN VS110 110W Portable Solar Panel

The VTOMAN VS110 is a foldable solar panel with a peak power of 110 W and a conversion efficiency of 25%. It uses Topcorn cells, and its broad compatibility with MC-4, Anderson, XT60, XT90, and DC5521 connectors allows it to work with VTOMAN portable power stations and many devices from other brands. The design is dust- and water-resistant in accordance with IP67, and when folded, the panel takes up significantly less space, making it easier to transport and store.

High Energy Conversion Efficiency

The Topcorn cells used offer a conversion efficiency of 25%, allowing for the effective utilization of available solar energy. The panel provides a peak power of 110 W, an operating voltage of 18 V, and an operating current of 6.1 A. The open-circuit voltage is 21 V, while the short-circuit current reaches 6.4 A.

Wide compatibility with various devices

The included MC4 adapter cable allows for use with XT60, XT90, Anderson, and DC5521 connectors. This enables the panel to be connected to both VTOMAN portable power stations and compatible devices from other brands. It is also compatible with sealed lead-acid batteries, gel batteries, and open-type lead-acid batteries.

Quick Setup in the Field

Adjustable legs make it easy to quickly position the panel on the ground and adjust its angle to suit current conditions. Metal eyelets also allow it to be hung, for example, on a balcony or an RV. This makes it easy to adapt the mounting method to the location where solar energy will be used.

Foldable design facilitates transport

When unfolded, the panel measures 1255 × 597 × 4 mm, and when folded, 628 × 597 × 35 mm. Integrated handles make it easy to carry, and a bag on the back helps organize the cables and store them together with the panel. This design is particularly useful when traveling, camping, and in other situations where there is no constant access to the power grid.

IP67 Rating for Outdoor Use

The panel meets the IP67 protection rating requirements, which enhances its durability during outdoor use. The net weight is 11.57 lb, so despite its large working surface, the panel remains portable. The combination of its foldable design, carrying handles, and water resistance makes it easy to use in a variety of field conditions.

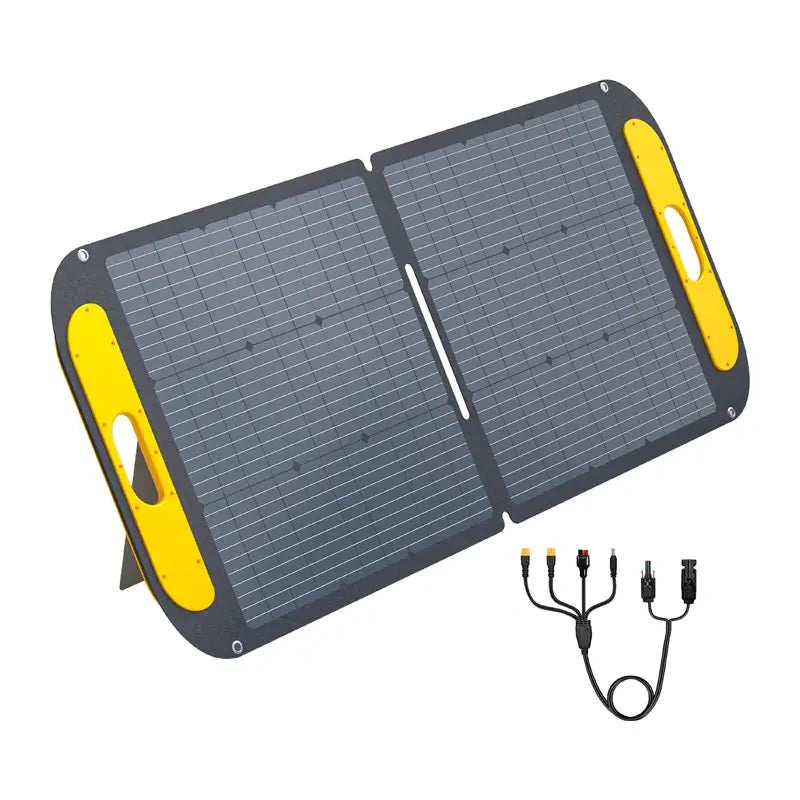

Included in the set

1x VTOMAN VS110 110 W solar panel
1x MC4 to XT60 / XT90 / Anderson / DC5521 adapter cable
1x User manual
