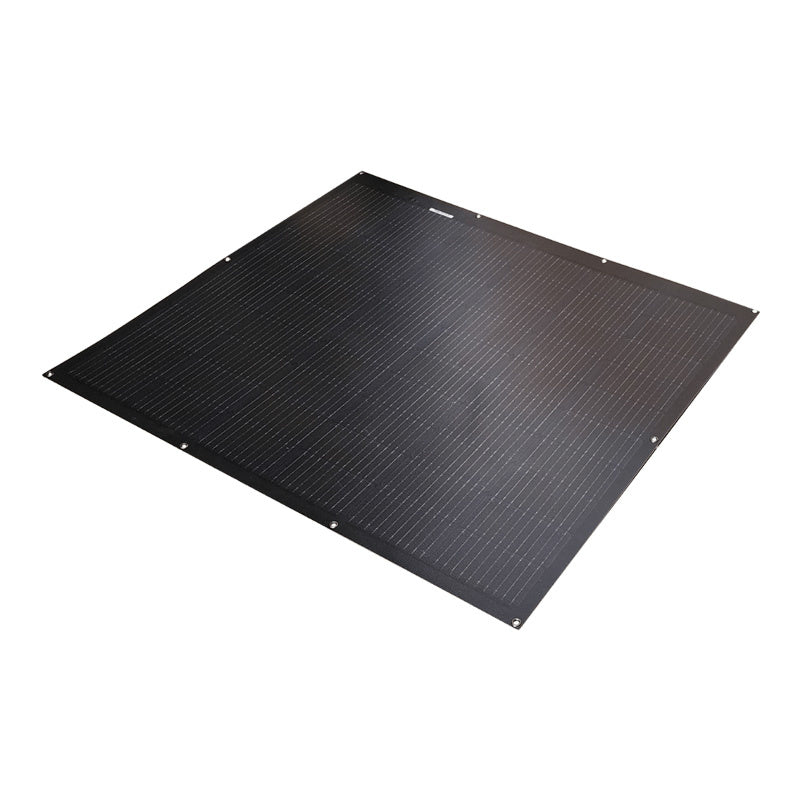

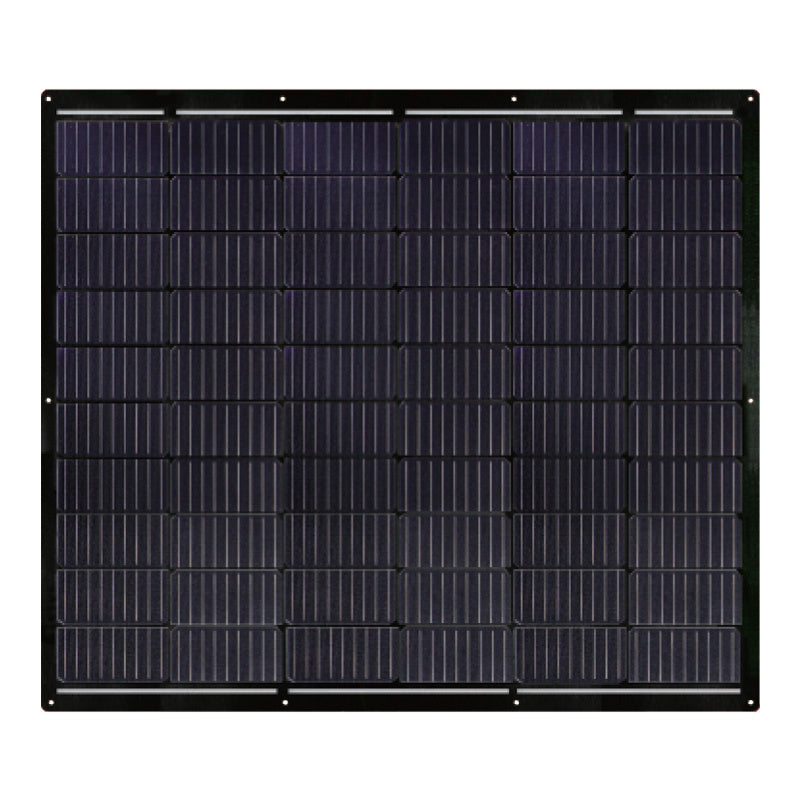

Sunman SMF200J 200W Flexible Photovoltaic Panel
The Sunman SMF200J 200W is an ultra-lightweight, frameless photovoltaic panel designed for mobile and independent power. Thanks to innovative eArc technology, it combines the proven performance of crystalline silicon cells with a flexible composite material just 2mm thick. It is about 70% lighter and up to 95% thinner than traditional glass panels, while offering equally high durability and damage resistance. It is ideal for vehicles, boats, roofs with limited load-bearing capacity, and anywhere flexibility, aesthetics and easy integration are important. It will also be an excellent choice for creating a balcony photovoltaic installation in a block of flats.
Ultra-lightweight design and hassle-free installation
The SMF200J weighs only about 2.6 kg, and its dimensions are 1159 x 1026 x 2 mm. This makes it very easy to transport! In addition, the flexible, frameless design eliminates the need for heavy mounts and aluminum frames. The panel can be glued directly to the surface - without drilling and without disturbing the waterproofing layers, which greatly speeds up and simplifies installation.
Flexibility that adapts to your needs

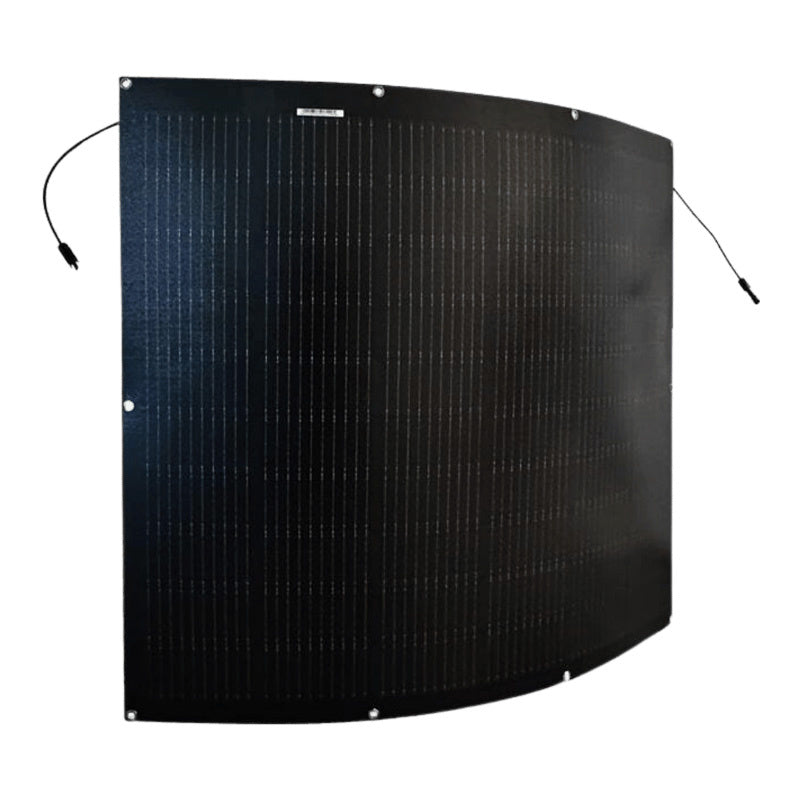

A minimum bending radius of 0.5 meters allows you to install the panel even on slightly curved surfaces. It's the perfect choice for non-standard applications, such as on campers, yachts, containers, modern corrugated metal roofs or balconies in a block of flats. The eArc solution provides seamless integration into the structure - aesthetically pleasing and invisible from the outside.
Ready for harsh conditions
The panel meets the stringent IEC 61215 and 61730 standards, and also features an IP68 rating, which means full dust and water resistance. Thanks to its glass-free design, there is no risk of cracking or chipping - even with intense vibration or during transport.
Performance you can rely on
Using 60 monocrystalline cells, the panel achieves an efficiency of 16.9% and a maximum power output of 200 watts. Low weight and compact size do not mean compromising on performance!
General
| Manufacturer | Sunman |
|---|---|
| Model | SMF200J-6X10DB-e |
Electrical characteristics (STC)
| Maximum power | 200 W |
|---|---|
| Maximum voltage | 34,2 V |
| Maximum current | 6,10 A |
| Open circuit voltage | 41,6 V |
| Short-circuit current | 6,37 A |
| Module efficiency | 16,9% |
| Operating temperature range | From -40°C to 85°C |
| Maximum system voltage | 1500 V DC (IEC) |
| Maximum fuse current | 25 A |
| Application class | A |
| Power tolerance | 0 / +5 W |
Electrical characteristics (NMOT)
| Maximum power | 162,3 W |
|---|---|
| Maximum voltage | 34,2 V |
| Maximum current | 4,75 A |
| Open circuit voltage | 41,7 V |
| Short-circuit current | 5,09 A |
Mechanical properties
| Cell technology | Monocrystalline (182 mm, half-cell) |
|---|---|
| Number of cells | 60 (6 x 10) |
| Module dimensions | 1159 x 1026 x 2 mm |
| Weight | 2.6 kg |
| Color of the back layer | Black |
| Frame | None (frameless panel) |
| Waterproof class | IP68 |

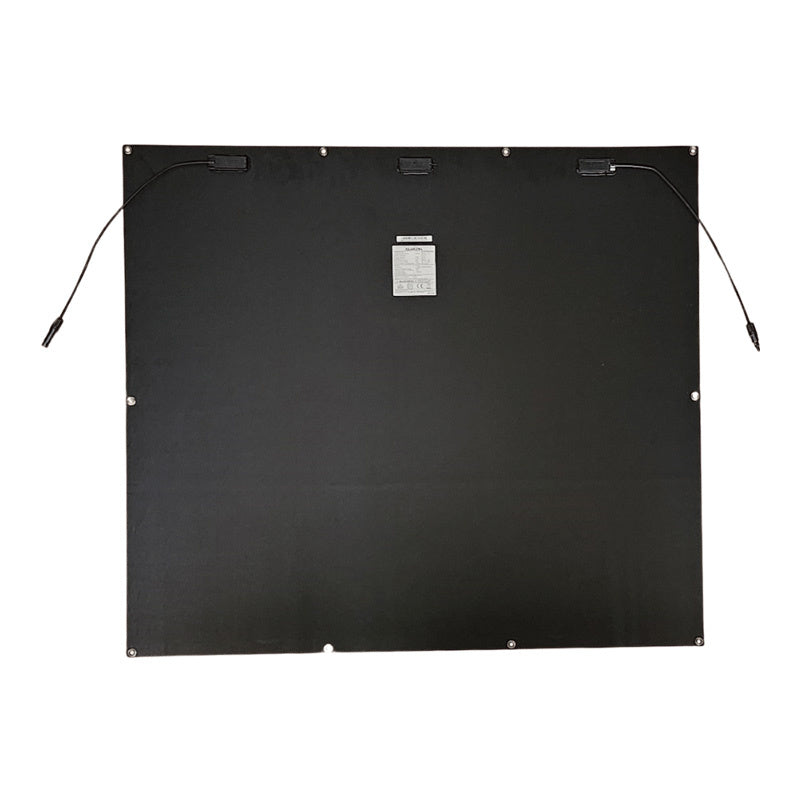

| Output cable | PV 4.0 mm 2, (+)450 mm / (-)450 mm |
| Connector | MC4 compatible |
