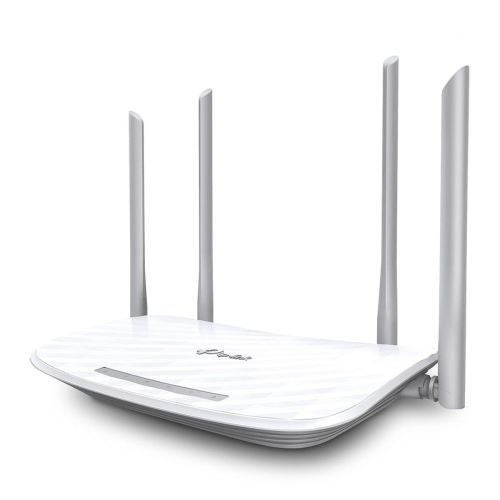

TP-Link Wi-Fi Router Archer A5 AC1200, 1200Mbps, LAN/WAN, 802.11ac, hvid EU

Features:

• Supports 802.11ac standard


• Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth


• 4 external antennas provide stable wireless connections and optimal coverage


• Easy network management at your fingertips with TP-Link Tether


• Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming


• Supports Access Point mode to create a new Wi-Fi access point

Technical specifications:

WIRELESS

• Standards:




  • Wi-Fi 5


  • IEEE 802.11ac/n/a 5 GHz


  • IEEE 802.11n/b/g 2.4 GHz






• WiFi Speeds:



  • AC1200


  • 5 GHz: 867 Mbps (802.11ac)


  • 2.4 GHz: 300 Mbps (802.11n)






• WiFi Range:



  • Suitable for 2 Bedroom Houses


  • 4× Fixed Antennas


  • Multiple antennas form a signal-boosting array to cover more directions and large areas






• WiFi Capacity:



  • Medium


  • Dual-Band


  • Allocate devices to different bands for optimal performance






• Working Modes:



  • Router Mode


  • Access Point Mode





SECURITY

• Network Security:



  • SPI Firewall


  • Access Control


  • IP & MAC Binding


  • Application Layer Gateway






• Guest Network:



  • 1× 5 GHz Guest Network


  • 1× 2.4 GHz Guest Network






• WiFi Encryption:



  • WEP


  • WPA


  • WPA2


  • WPA/WPA2-Enterprise (802.1x)





HARDWARE

• Ethernet Ports:



  • 1× 10/100 Mbps WAN Port


  • 4× 10/100 Mbps LAN Ports






• Buttons:



  • WPS/Wi-Fi Button


  • Power On/Off Button


  • Reset Button


  • Power: 9 V �# 0.85 A





SOFTWARE

• Protocols: IPv4, IPv6


• Parental Controls:




  • URL Filtering


  • Time Controls






• WAN Types:




  • Dynamic IP


  • Static IP


  • PPPoE


  • PPTP


  • L2TP


  • Quality of Service: QoS by Device






• NAT Forwarding:




  • Port Forwarding


  • Port Triggering


  • DMZ


  • UPnP






• IPTV:




  • IGMP Proxy


  • IGMP Snooping


  • Bridge


  • Tag VLAN






• DHCP:




  • Address Reservation


  • DHCP Client List


  • Server






• DDNS:




  • NO-IP


  • DynDNS






• Management:




  • Tether App


  • Webpage





OTHER

• System Requirements:




  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser


  • Cable or DSL Modem (if needed)


  • Subscription with an internet service provider (for internet access)


  • Certifications: FCC, CE, RoHS






• Environment:




  • Operating Temperature: 0!~40! (32 ! ~104 !)


  • Storage Temperature: -40!~70! (-40 ! ~158 !)


  • Operating Humidity: 10%~90% non-condensing


  • Storage Humidity: 5%~90% non-condensing





TEST DATA

• WiFi Transmission Power:


• CE EIRP: <20dBm(2.4GHz), <23dBm(5GHz)


• FCC: <30dBm(2.4GHz & 5GHz)


• WiFi Reception Sensitivity:




  • 5GHz:




    • 11a 54M: -73dBm


    • 11ac VHT20 MCS8: -68dBm


    • 11ac VHT40 MCS9: -64dBm


    • 11ac VHT80 MCS9: -60dBm






  • 2.4GHz:



    • 11g 54M: -76dBm


    • 11n HT20 MCS7: -74dBm


    • 11n HT40 MCS7: -71dBm









PHYSICAL

• Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in (229.9 × 144.2 × 36.9 mm)


• Package Contents:




  • Wi-Fi Router Archer A5


  • Power Adapter


  • RJ45 Ethernet Cable


  • Quick Installation Guide
