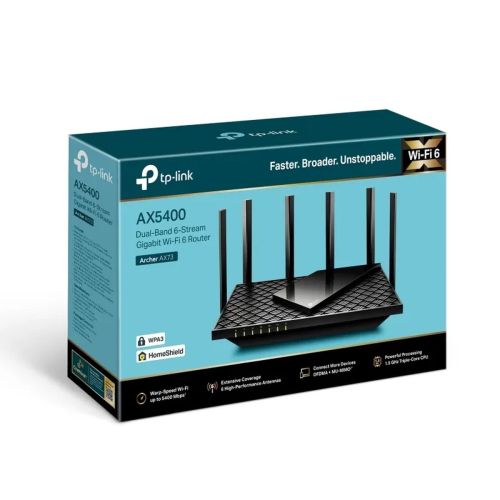

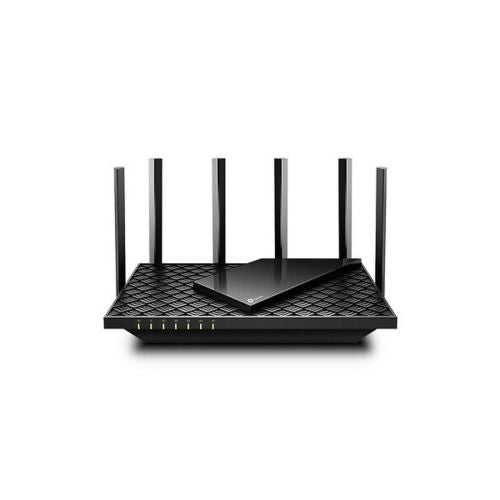

TP-Link Wi-Fi Router Archer AX73 AX5400, 5400Mbps, LAN/WAN, 802.11ac, Wi-Fi 6, sort EU

Features:

• Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.


• Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HT160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.


• Connect 200+ Devices – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.


• Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.


• HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.


• More Vents, Less Heat – Improved vents area unleash the full power of the whole machine.


• USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.


• Easy Setup – Set up the router in minutes with Tether app.

Technical specifications:

Wireless

• Standards: Wi-Fi 6




  • IEEE 802.11ax/ac/n/a 5 GHz


  • IEEE 802.11ax/n/b/g 2.4 GHz






• WiFi Speeds: AX5400




  • 5 GHz: 4804 Mbps (802.11ax, HE160)


  • 2.4 GHz: 574 Mbps (802.11ax)






• WiFi Range: Suitable for 3-bedroom houses


• 6× Fixed High-Performance Antennas


• Beamforming


• High-Power FEM


• 4T4R


• WiFi Capacity: High


• Dual-Band


• 4×4 MU-MIMO


• OFDMA


• Airtime Fairness


• DFS


• 6 Streams


• Working Modes: Router Mode, Access Point Mode

Security

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway


• HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner


• Guest Network: 1× 5 GHz, 1× 2.4 GHz


• VPN Server: OpenVPN, PPTP


• VPN Client: OpenVPN, PPTP, L2TP


• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Hardware

• Processor: 1.5 GHz Triple-Core CPU


• Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports


• Static Link Aggregation (LAG) available with 2× LAN ports


• USB Support: 1× USB 3.0 Port


• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32


• Supported Functions: Apple Time Machine, FTP Server, Media Server


• Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button


• Power: 12 V �# 2.5 A

Software

• Protocols: IPv4, IPv6


• Service Kits: HomeShield


• OneMesh™: Supported


• Parental Controls: HomeShield Parental Controls


• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP


• Quality of Service: QoS by Device


• Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS


• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server


• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN


• DHCP: Address Reservation, DHCP Client List, Server


• DDNS: TP-Link, NO-IP, DynDNS


• Management: Tether App, Webpage

Other

• System Requirements: Compatible with various browsers


• Certifications: FCC, CE, RoHS


• Environment:




  • Operating Temperature: 0!~40! (32 ! ~104 !)


  • Storage Temperature: -40!~70! (-40 ! ~158 !)


  • Operating Humidity: 10%~90% non-condensing


  • Storage Humidity: 5%~90% non-condensing





Test Data

• WiFi Transmission Power:




  • CE: <20dBm{2.4GHz}, <23dBm{5.15GHz~5.35GHz}, <30dBm{5.47GHz~5.725GHz}


  • FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz}, <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz}


  • WiFi Reception Sensitivity: Detailed specifications for 2.4 GHz and 5 GHz bands





Physical

• Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)

Items included:

• Wi-Fi Router Archer AX73, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
